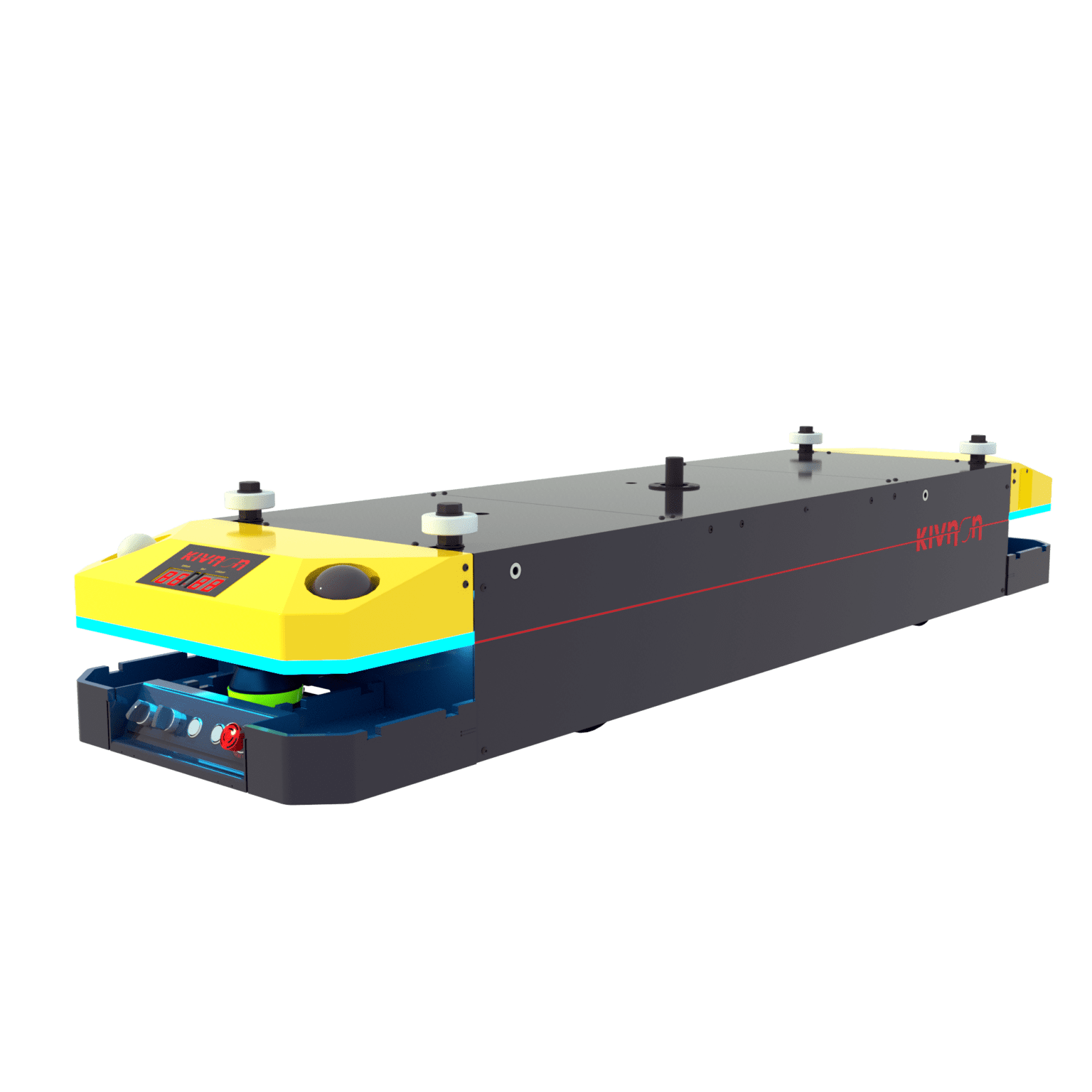

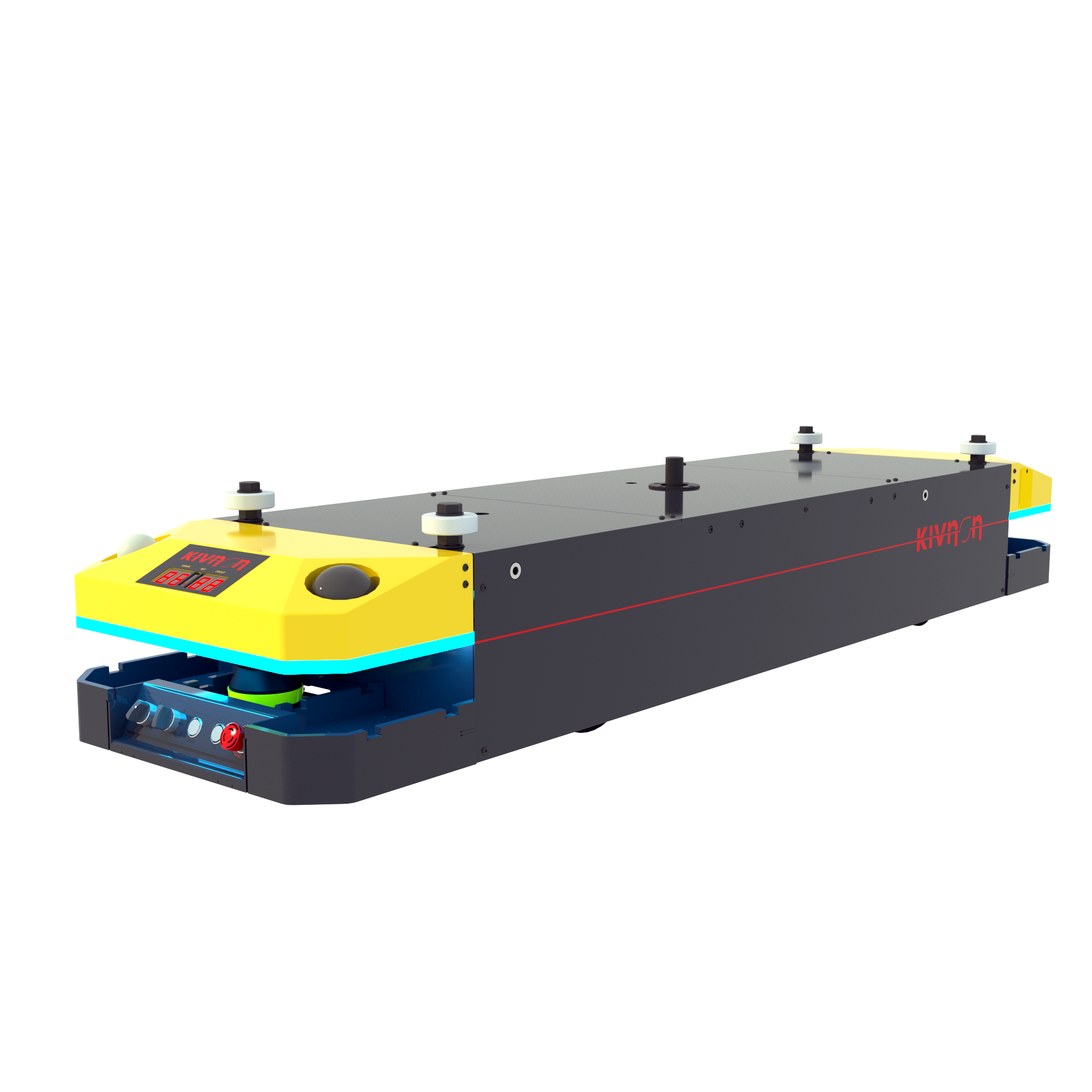

AGV/AMR MOUSE
K11HP Two-Way
Automated guided vehicle (AGV/AMR) designed to transport loads on trolleys in two-way directions of travel.
This AGV/AMR model is the perfect solution for automating the transport of large loads over long distances in processes that need maneuvers to be performed in two-way directions.
AGV/AMR MOUSE
K11HP Two-Way
This mobile robot is capable of performing cyclical or conditional circuits and interacting with other AGV/AMRs, machines, systems and/or people.
Easy diagnosis. Frontal Display informs about alerts or alarms, battery status and AGV destination
Please contact us for further information on the K11HP Two-Way.
MOVEMENT
Two-way movement
LOAD
Towing capacity of up to 5,000kg on a wheeled trolley
GUIDANCE
Magnetic guidance navigation
CONNECTIVITY
Can be adapted to connect to fleet management systems, including those based on VDA 5050
HIGH PRECISION
Makes precise stops with full accuracy
MOVEMENT
Two-way movement
LOAD
Towing capacity of up to 3,000kg on a wheeled trolley
GUIDANCE
Magnetic guidance or mapping navigation
CONNECTIVITY
Can be adapted to connect to fleet management systems, including those based on VDA 5050
HIGH PRECISION
Makes precise stops with full accuracy
Transport type:
Towing
Maximum speed:
1 m/s
Battery:
AGM or lithium, exchangeable and online charging in integrated circuit
Safety measures:
Two laser scanners, ultrasound sensor, safety PLC and Bluespot
Status:
The features and specifications described are generic and may vary according to model and configuration.
AGV/AMR K11HP TWO-WAY
Coupling system:
Automated guided vehicle (AGV/AMR) designed to transport loads by coupling and decoupling trolleys automatically via retractable pin.
