AGV/AMR PLATFORM

K41 Omnidirectional

Low, automated guided vehicle (AGV/AMR) designed to transport on-board loads.
Omnidirectional AGV with the ability to maneuver in any direction and travel anywhere
logo
This mobile robot is capable of performing cyclical or conditional circuits and interacting with other AGVs/AMRs, machines, systems and/or people.
AGV/AMR PLATFORM

K41 Omnidirectional

This AGV/AMR model is the perfect solution for automating the transport of medium loads in highly complex processes.

Thanks to its omnidirectional mobility, it can perform maneuvers that are impossible to other AGVs/AMRs and it requires less space.

Contact us for further information on the K41 Omnidirectional.

AGV with omnidirectional mobility
MOVEMENT

Omnidirectional movement

LOAD

On board load capacity     of up to 500kg

GUIDANCE

Mapping navigation

CONNECTIVITY

Can be adapted to connect to fleet management systems, including those based on VDA 5050

HIGH PRECISION

Makes precise stops with full accuracy

TRANSPORT  TYPE:

Lifting table of up to 250mm

MAXIMUM SPEED:

Up to 1 m/s

BATTERY:

2 Lithium batteries

In line battery for Opportunity Charging

On-board Charging Connector

SAFETY MEASURES:

1 Safety PLC

2 Safety Scanners

2 Emergency Stop Buttons

Status:

Touch screen as HMI

The features and specifications described are generic and may vary according to model and configuration.
AGV/AMR PLATFORM

K41 Omnidirectional

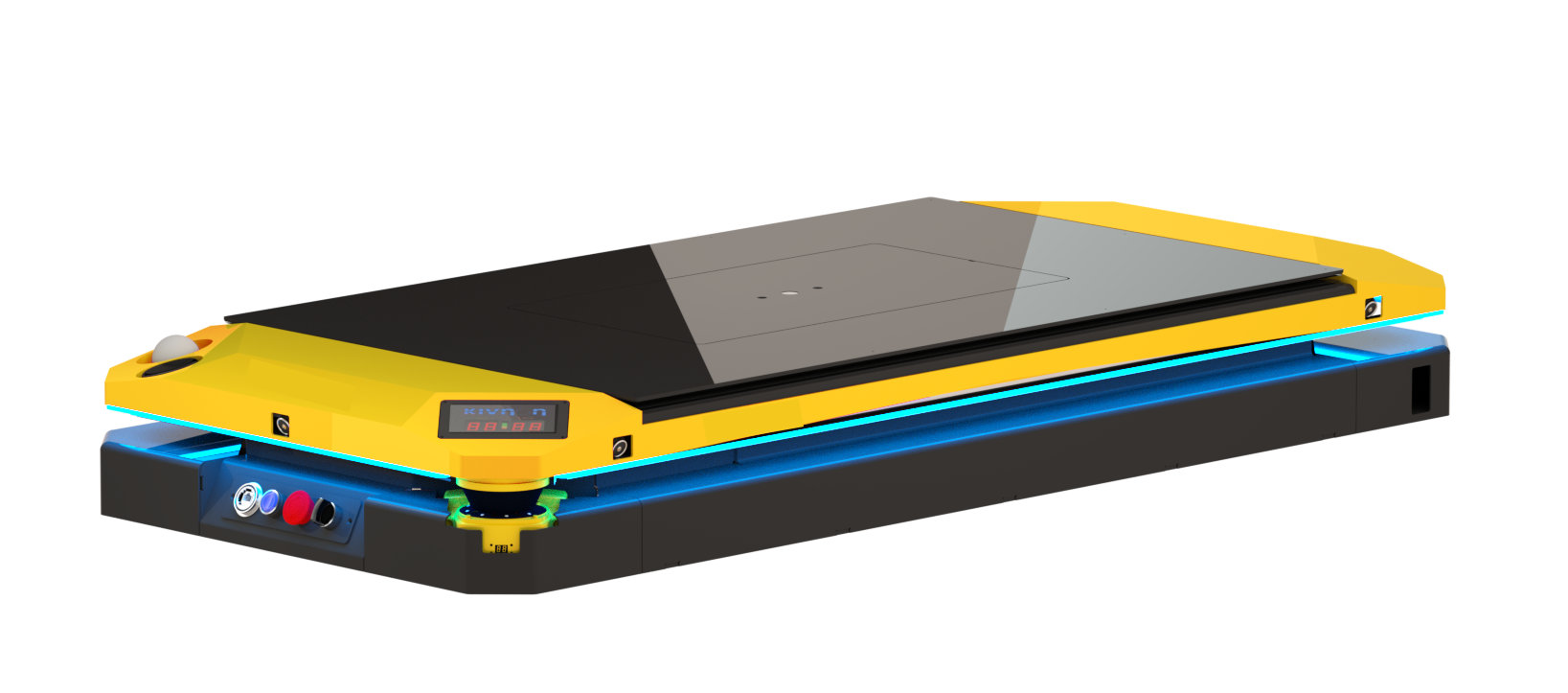

View the K41 from different angles and learn about its technical features.

Length: 1620mm x Width: 850mm x Height: 285mm
Omnidirectional AGV with unlimited maneuverability
AGV/AMR K41 Omnidirectional

Coupling system

Automated guided vehicle (AGV/AMR) designed to adapt to all types of trolleys and to transport loads on board via lift table. It can also be used as a workbench.
