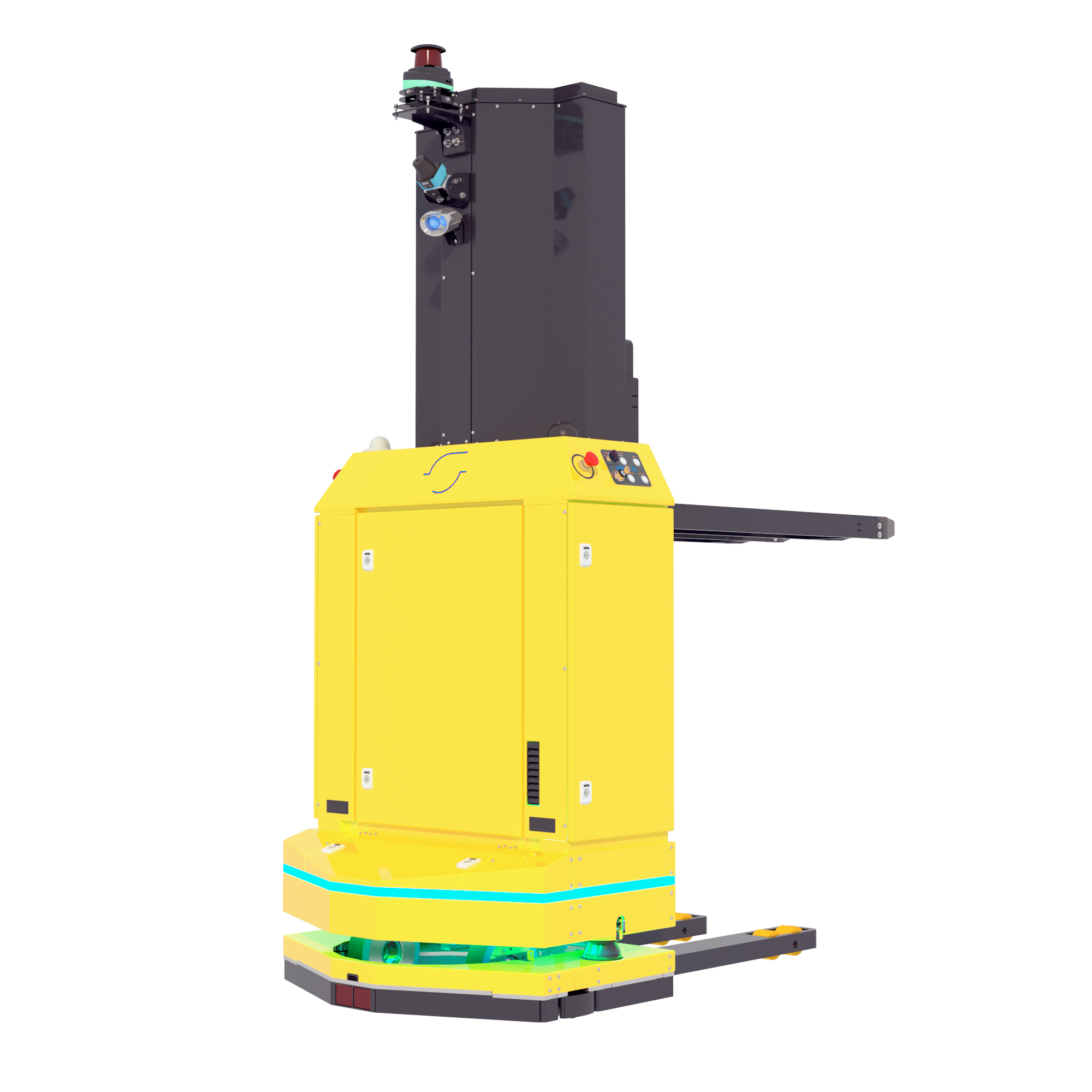

AGV/AMR FORKLIFT
K55B Pallet Mover
Automated guided vehicle (AGV/AMR) designed to move and move palletized loads at low heights.
AGV/AMR FORKLIFT
K55B Pallet Mover
Automated guided vehicle (AGV/AMR) designed to move and move palletized loads at low heights.
This AGV/AMR model is the perfect solution for automating the transport of palletized medium loads at heights.
AGV/AMR FORKLIFT
K55B Pallet Mover
This mobile robot is capable of performing cyclical or conditional circuits and interacting with other AGVs/AMRs, machines, systems and/or people.
MOVEMENT
Bidirectional Movement
LOAD
Load capacity of up to 1200 kg
ELEVATION
Lifting capacity of up to 1,400 mm
GUIDANCE
Mapping navigation
CONNECTIVITY
Can be adapted to connect to fleet management systems, including those based on VDA 5050
HIGH PRECISION
Makes precise stops with full accuracy
AGV/AMR FORKLIFT
K55B Pallet Mover
This mobile robot is capable of performing cyclical or conditional circuits and interacting with other AGVs/AMRs, machines, systems and/or people.
TRANSPORT TYPE:
Move palletized loads
Electric lifting with spingle and fixed forks
MAXIMUM SPEED:
Main direction up to 1 m/s
Secundary direction up to 0,3 m/s
BATTERY:
2 Lithium batteries
In line battery for Opportunity Charging
On-board Charging Connector
SAFETY MEASURES:
1 Safety PLC
2 Safety Scanners
2 Emergency Stop Buttons
Status:
Touch screen as HMI
The features and specifications described are generic and may vary according to model and configuration.
The exact technical details might vary depending on the specific project where this AGV/AMR will be installed.
The features and specifications described are generic and may vary according to model and configuration.
The exact technical details might vary depending on the specific project where this AGV/AMR will be installed.
