AGV/AMR MOUSE

K11 Two-Way

Small, automated guided vehicle (AGV/AMR) designed to transport loads on trolleys in two-way directions of travel.
AGV mouse bidireccional
logo

AGV/AMR MOUSE

K11 Two-Way

Small, automated guided vehicle (AGV/AMR) designed to transport loads on trolleys in two-way directions of travel.
AGV mouse bidireccional
logo

This AGV/AMR model is the perfect solution for automating the transport of large loads over long distances in processes that need maneuvers to be performed in two-way directions.

AGV/AMR MOUSE

K11 Two-Way

This mobile robot is capable of performing cyclical or conditional circuits and interacting with other AGV/AMRs, machines, systems and/or people.


Please contact us for further information on the K11 Two-Way.

AGV mouse bidireccional
MOVEMENT

Bidirectional movement

LOAD

Towing capacity of up to 1.200kg on a wheeled trolley

GUIDANCE

Magnetic or mapping navigation

CONNECTIVITY

Can be adapted to connect to fleet management systems, including those based on VDA 5050

HIGH PRECISION

Makes precise stops with full accuracy

AGV/AMR MOUSE

K11 Two-Way

This mobile robot is capable of performing cyclical or conditional circuits and interacting with other AGV/AMRs, machines, systems and/or people.


Please contact us for further information on the K11 Two-Way.

TRANSPORT  TYPE:

Towing

MAXIMUM SPEED:

Up to 1 m/s

BATTERY:

Lithium

In line battery for Opportunity Charging

On-board Charging Connector

SAFETY MEASURES:

1 Safety PLC

2 Safety Scanners

2 Emergency Stop Buttons

Status:

Frontal and rear display

Status, Error, Battery and Circuit monitoring

The features and specifications described are generic and may vary according to model and configuration.
The features and specifications described are generic and may vary according to model and configuration.
AGV/AMR MOUSE

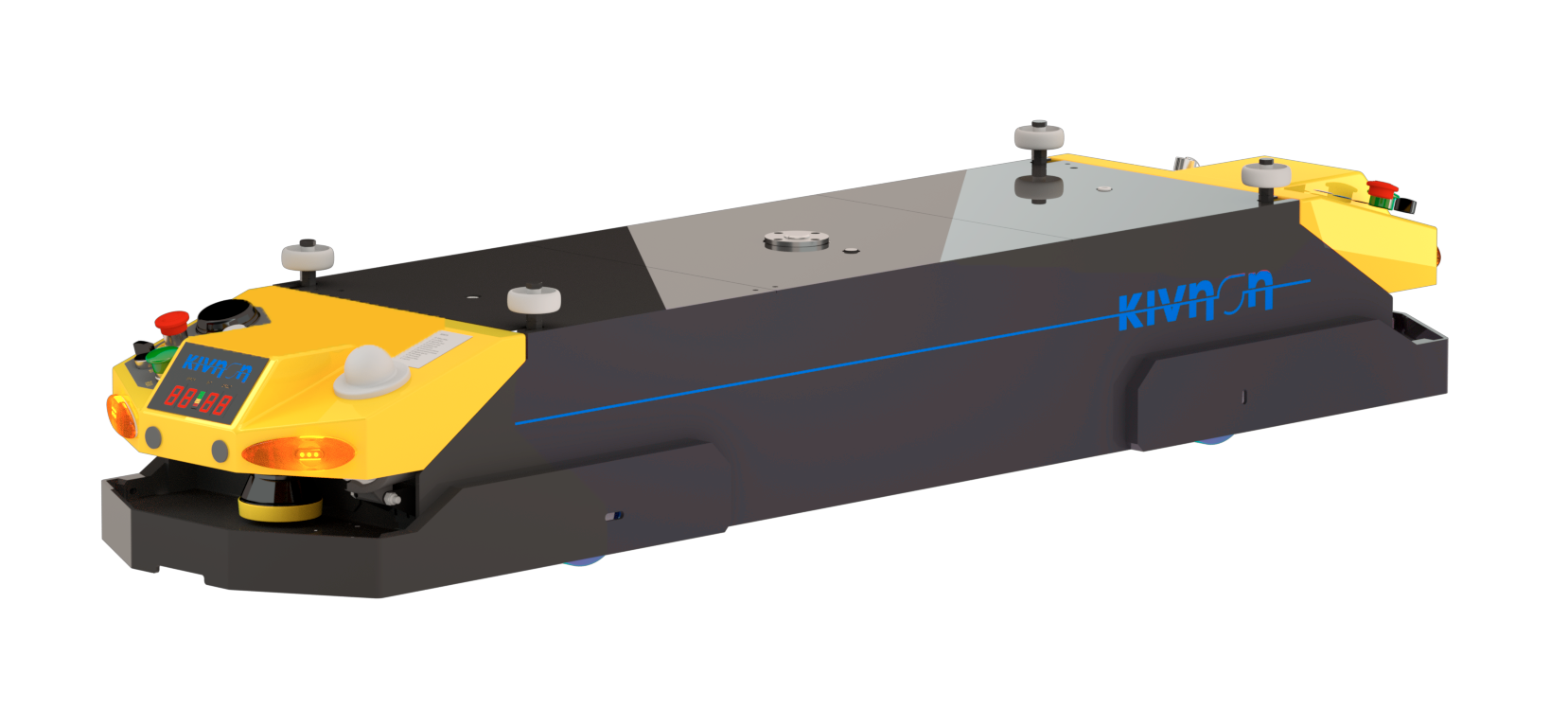

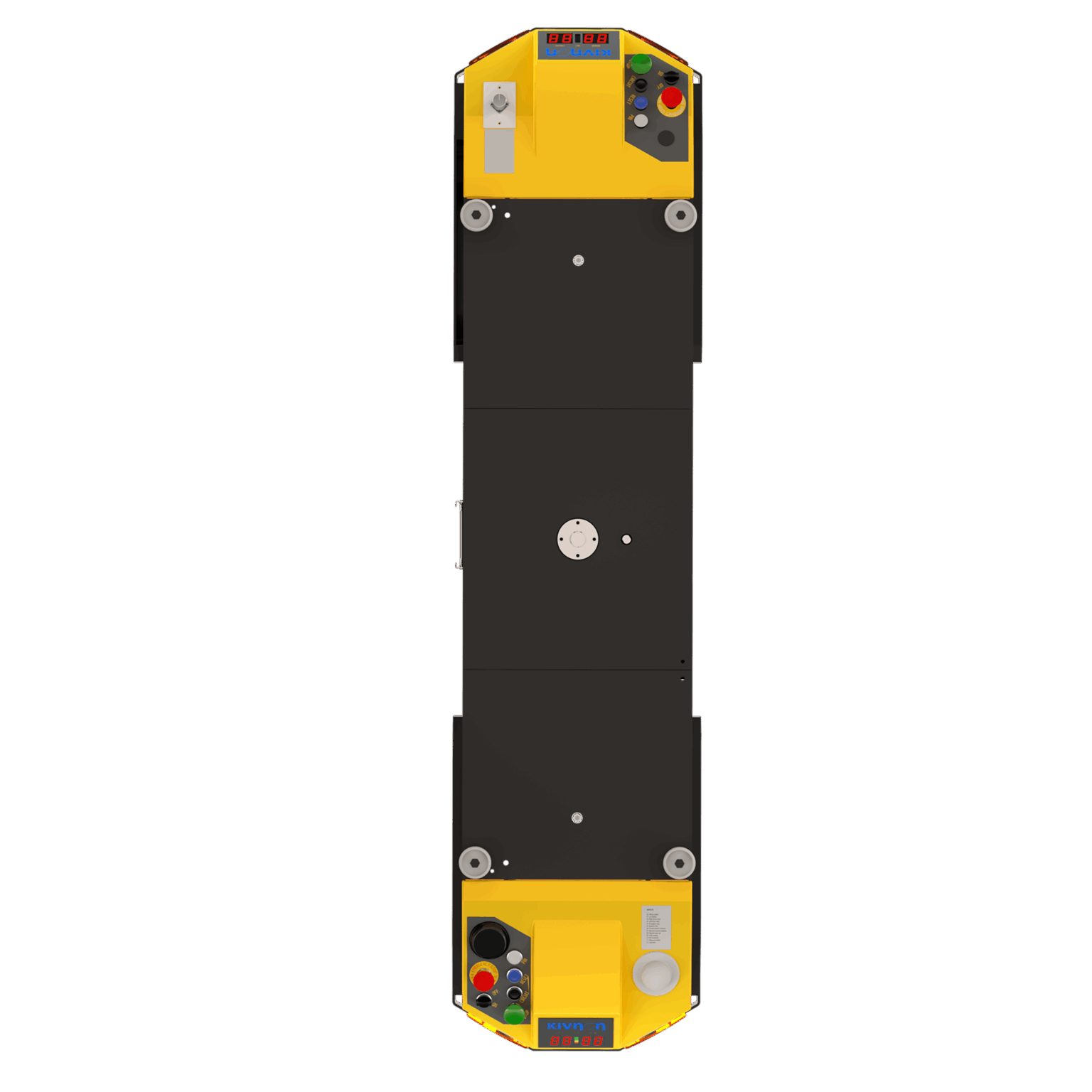

Discover the K11 Two-Way

View the K11 Two-Way from different angles and learn about its technical features. Two versions of this model are available: K11 and K11P.

K11: Length: 1898 mm x Width: 460 mm x Height: 331 mm
AGV/AMR MOUSE

Discover the K11 Two-Way

View the K11 from different angles and learn about its technical features.
Two versions of this model are available: K11 and K11P.

K11: Length: 1898 mm x Width: 460 mm x Height: 331 mm

Discover more about K11

AGV mobile robotic towing trolley
AGV mouse bidireccional for pulling trolleys
AGV/AMR K11 TWO-WAY

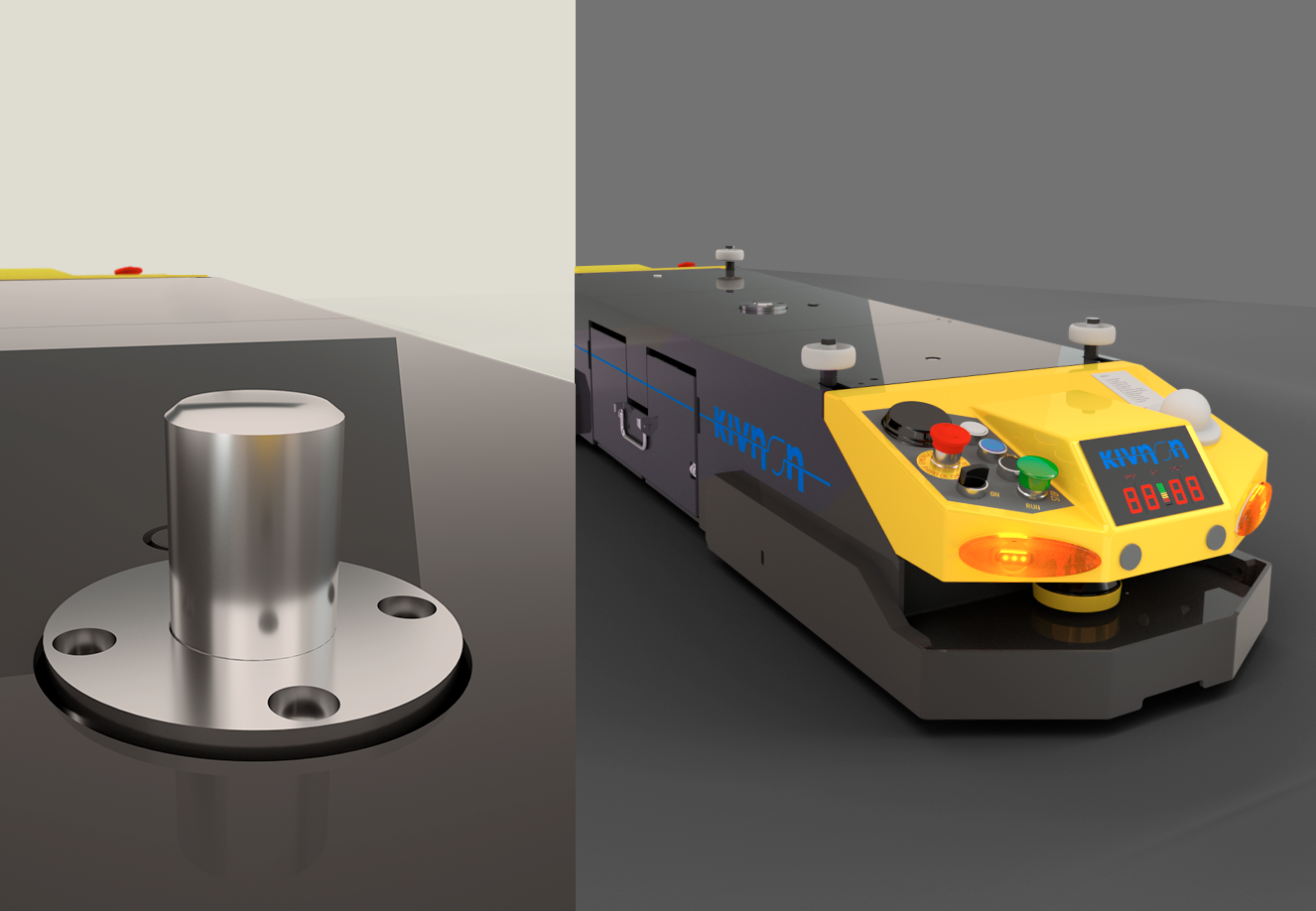

Coupling system:

Automated guided vehicle (AGV/AMR) designed to transport loads by coupling and decoupling trolleys automatically via retractable pin.
