AGV/AMR TWISTER

K05 Twister

Towing automated guided vehicle (AGV/AMR) designed to transport trolleys or on-board loads.

Ideal AGV for limited work space
logo

AGV/AMR TWISTER

K05 Twister

Towing automated guided vehicle (AGV/AMR) designed to transport trolleys or on-board loads.

Ideal AGV for limited work space
logo

This AGV/AMR model is the perfect solution for automating the transport of medium loads in highly specific processes and work in tight spaces.

AGV/AMR TWISTER

K05 Twister

This mobile robot is capable of performing cyclical or conditional circuits and  interacting with other AGVs/AMRs, machines, systems and/or people.

Please contact us for further information on the K05 Twister.

Discover more about the K05 Twister in the following video:

MOVEMENT

Rotational, 360º movement on its own axis

LOAD

On-board load capacity of up to 450kg

Towing capacity of up to 1,000kg on a wheeled trolley

GUIDANCE

Magnetic or mapping guidance navigation

CONNECTIVITY

Can be adapted to connect to fleet management systems, including those based on VDA 5050

HIGH PRECISION

Makes precise stops with full accuracy

AGV/AMR TWISTER

K05 Twister

This mobile robot is capable of performing cyclical or conditional circuits and  interacting with other AGVs/AMRs, machines, systems and/or people.

Please contact us for further information on the K05 Twister.

Discover more about the K05 Twister in the following video:

MOVEMENT

Rotational, 360º movement on its own axis

LOAD

On-board load capacity of up to 450kg

Towing capacity of up to 1,000kg on a wheeled trolley

GUIDANCE

Magnetic or mapping guidance navigation

CONNECTIVITY

Can be adapted to connect to fleet management systems, including those based on VDA 5050

HIGH PRECISION

Makes precise stops with full accuracy

TRANSPORT  TYPE:

Lifting table

Retractable pin

Double Pin

Roller conveyor.

MAXIMUM SPEED:

Up to 1 m/s

BATTERY:

Lithium battery

On board manual connector

In line battery for Opportunity Charging

SAFETY MEASURES:

1 Laser scanner

1 Safety PLC

2 Stop Emergency Button

STATUS:

Frontal display

Status, error, battery and circuit monitoring

The features and specifications described are generic and may vary according to model and configuration.
AGV/AMR TWISTER

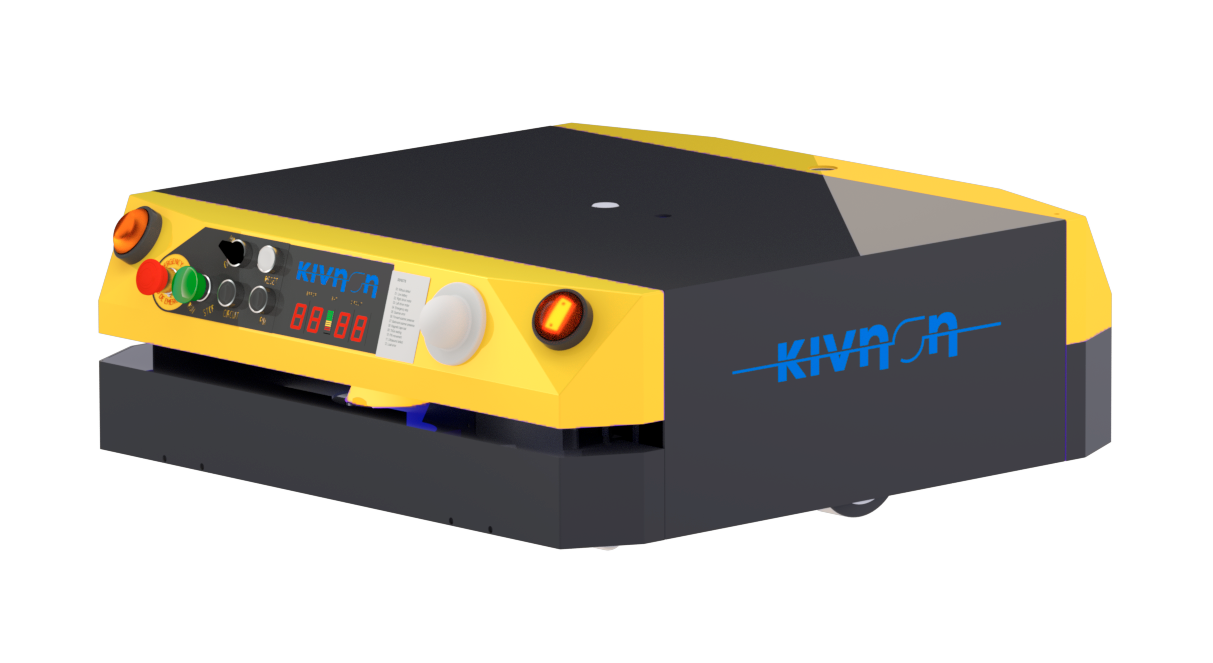

Discover the K05 Twister

View the K05 Twister from different angles and learn about its technical features.

Length: 800mm x Width: 800mm x Height: 280mm
AGV/AMR TWISTER

Discover the K05 Twister

View the K05 Twister from different angles and learn about its technical features.

Length: 800mm x Width: 800mm x Height: 280mm
AGV that fits in tight spaces
AGV/AMR K05 TWISTER

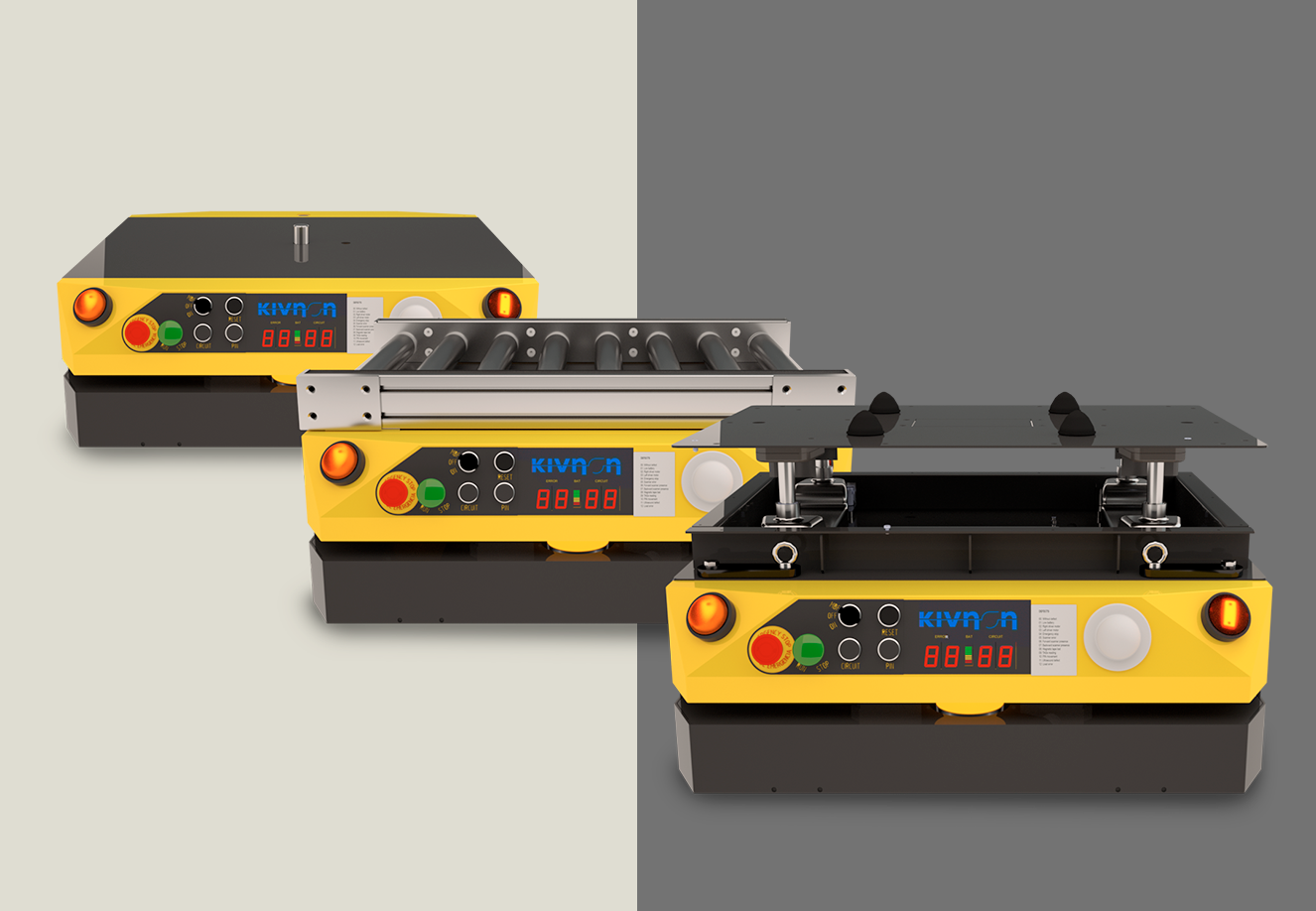

Coupling system

Automated guided vehicle (AGV/AMR) with different options for on-board or towed loads: retractable pin, lift table and roller conveyor. It can also be used as a workbench.

DISCOVER OUR PRODUCTS

Take a look at the AGV/AMR Twister and Platform range

Discover more about K05

AGV mobile robotic towing trolley
