AGV/AMR MOUSE

K10 One-Way

Small, automated guided vehicle designed to tow trolleys in a single direction of travel .
This mobile robot is capable of performing cyclical or conditional circuits and interacting with other AGVs/AMRs, machines, systems and/or people.
AGV/AMR MOUSE

K10 One-Way

This AGV/AMR model is the perfect solution for automating the transport of large loads over long distances in one-way processes.



Please contact us for further information on the K10 One-Way.



MOVEMENT

One-way movement

LOAD

Towing capacity of up to 3,000kg on a wheeled trolley

GUIDANCE

Magnetic guidance navigation

CONNECTIVITY

Can be adapted to connect to fleet management systems, including those based on VDA 5050

HIGH PRECISION

Makes precise stops with full accuracy

MOVEMENT

One-way movement

LOAD

Towing capacity of up to 3,000kg on a wheeled trolley

GUIDANCE

Magnetic guidance navigation

CONNECTIVITY

Can be adapted to connect to fleet management systems, including those based on VDA 5050

HIGH PRECISION

Makes precise stops with full accuracy

AGV/AMR MOUSE

Discover the K10 One-Way

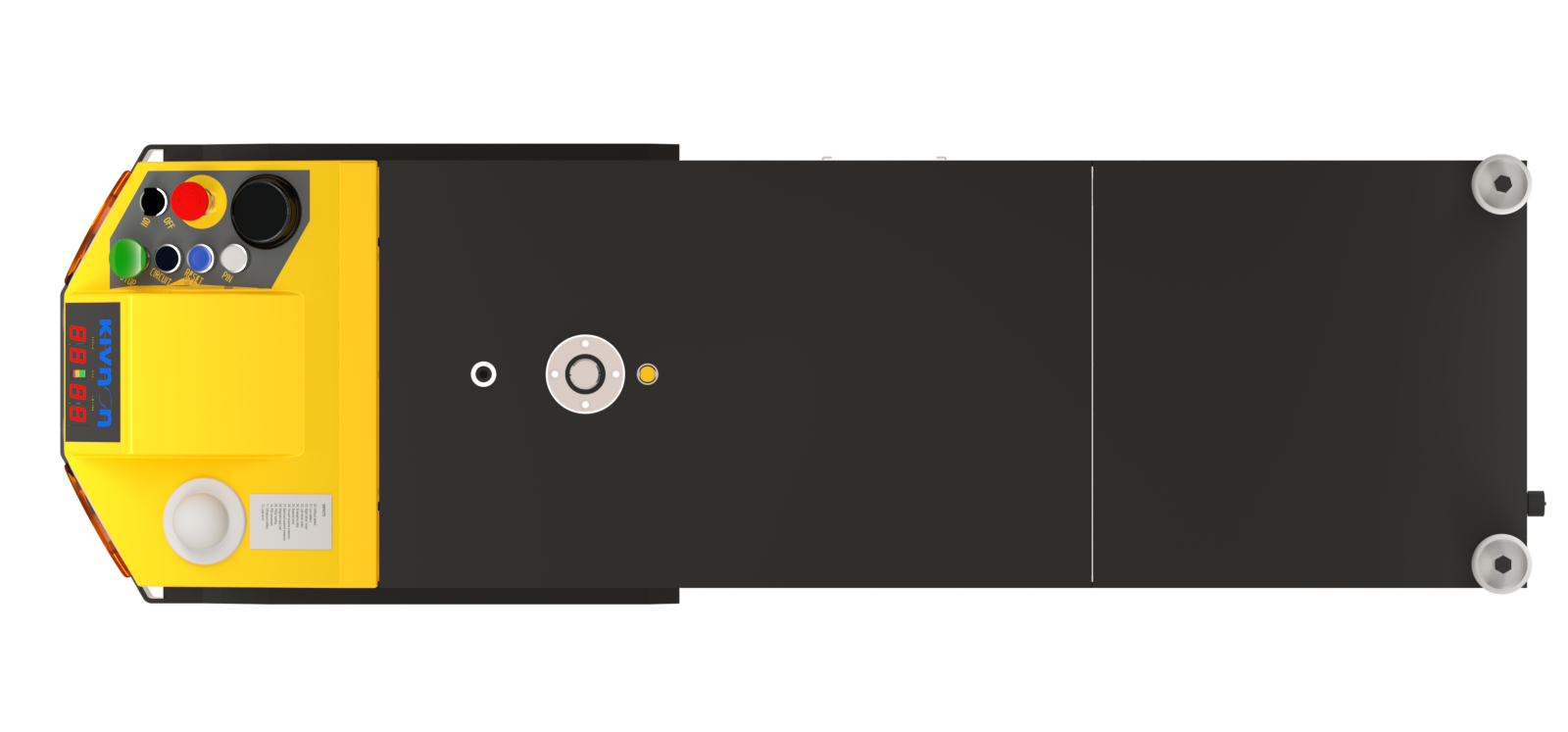

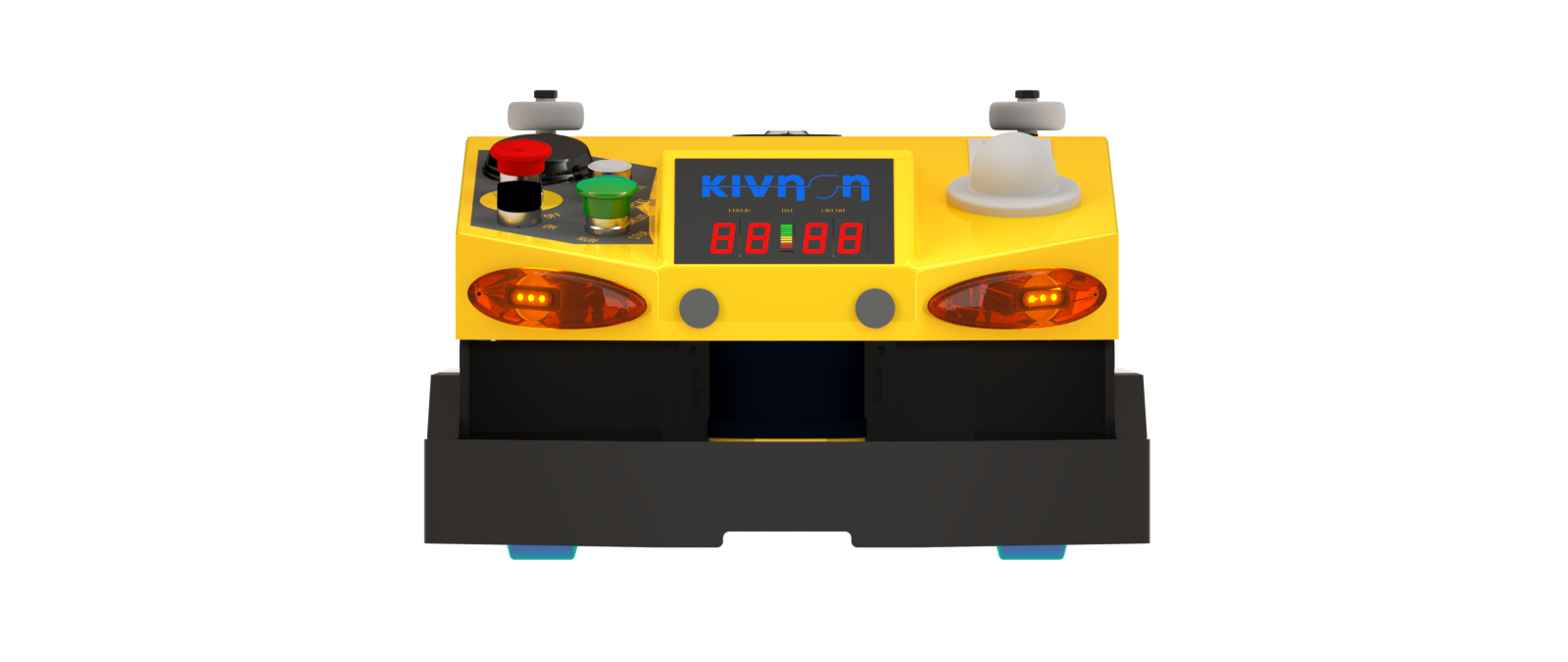

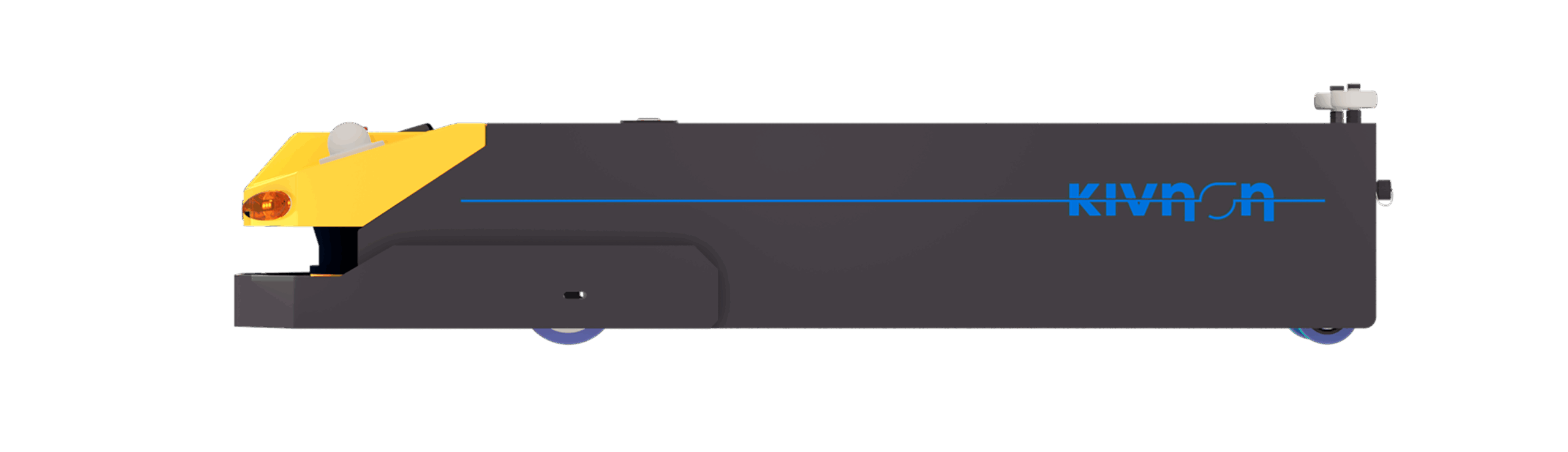

View the K10 from different angles and learn about its technical features. Two versions of this model are available: K10 and K10P.

K10: Length: 1455mm x Width: 460mm x Height: 280mm
K10P: Length: 1700mm x Width: 500mm x Height: 280mm

Transport type:

Towing

Maximum speed:

1 m/s

Battery:

AGM or lithium, exchangeable and online charging in integrated circuit


Safety measures:

Laser scanner, ultrasound sensor, safety PLC and Bluespot

Status:

Frontal status, error, and circuit control display

The features and specifications described are generic and may vary according to model and configuration.
AGV/AMR K10 One-Way

Coupling system

Automated guided vehicle (AGV/AMR) designed to transport loads by coupling and decoupling trolleys automatically via retractable pin.

Please contact us for further information on the K10 One-Way.

K10
