AGV/AMR TWISTER

K05 Twister

Small, automated guided vehicle (AGV/AMR) designed to transport trolleys or on-board loads.
This mobile robot is capable of performing cyclical or conditional circuits and interacting with other AGVs/AMRs, machines, systems and/or people.
AGV/AMR TWISTER

K05 Twister

This AGV/AMR model is the perfect solution for automating the transport of medium loads in highly specific processes and work environments where space is tight.
Please contact us for further information on the K05 Twister.

Discover more about the K05 Twister in the following video:

MOVEMENT

Rotational, 360º movement on its own axis

LOAD

On-board load capacity of up to 500kg and towing capacity of up to 1,000kg on a wheeled trolley

GUIDANCE

Magnetic guidance navigation

CONNECTIVITY

Can be adapted to connect to fleet management systems, including those based on VDA 5050

HIGH PRECISION

Makes precise stops with full accuracy

MOVEMENT

Rotational, 360º movement on its own axis

LOAD

On-board load capacity of up to 500kg and towing capacity of up to 1,000kg on a wheeled trolley

GUIDANCE

Magnetic guidance navigation

CONNECTIVITY

Can be adapted to connect to fleet management systems, including those based on VDA 5050

HIGH PRECISION

Makes precise stops with full accuracy

AGV/AMR TWISTER

Discover the K05 Twister

View the K05 Twister from different angles and learn about its technical features.

Length: 800mm x Width: 800mm x Height: 280mm

Transport type:

Lifting

Maximum speed:

Up to 1 m/s

Battery:

AGM or lithium and online charging in integrated circuit

Safety measures:

Laser scanner and safety PLC

Status:

Frontal status, error, and circuit control display

The features and specifications described are generic and may vary according to model and configuration.
AGV/AMR K05 TWISTER

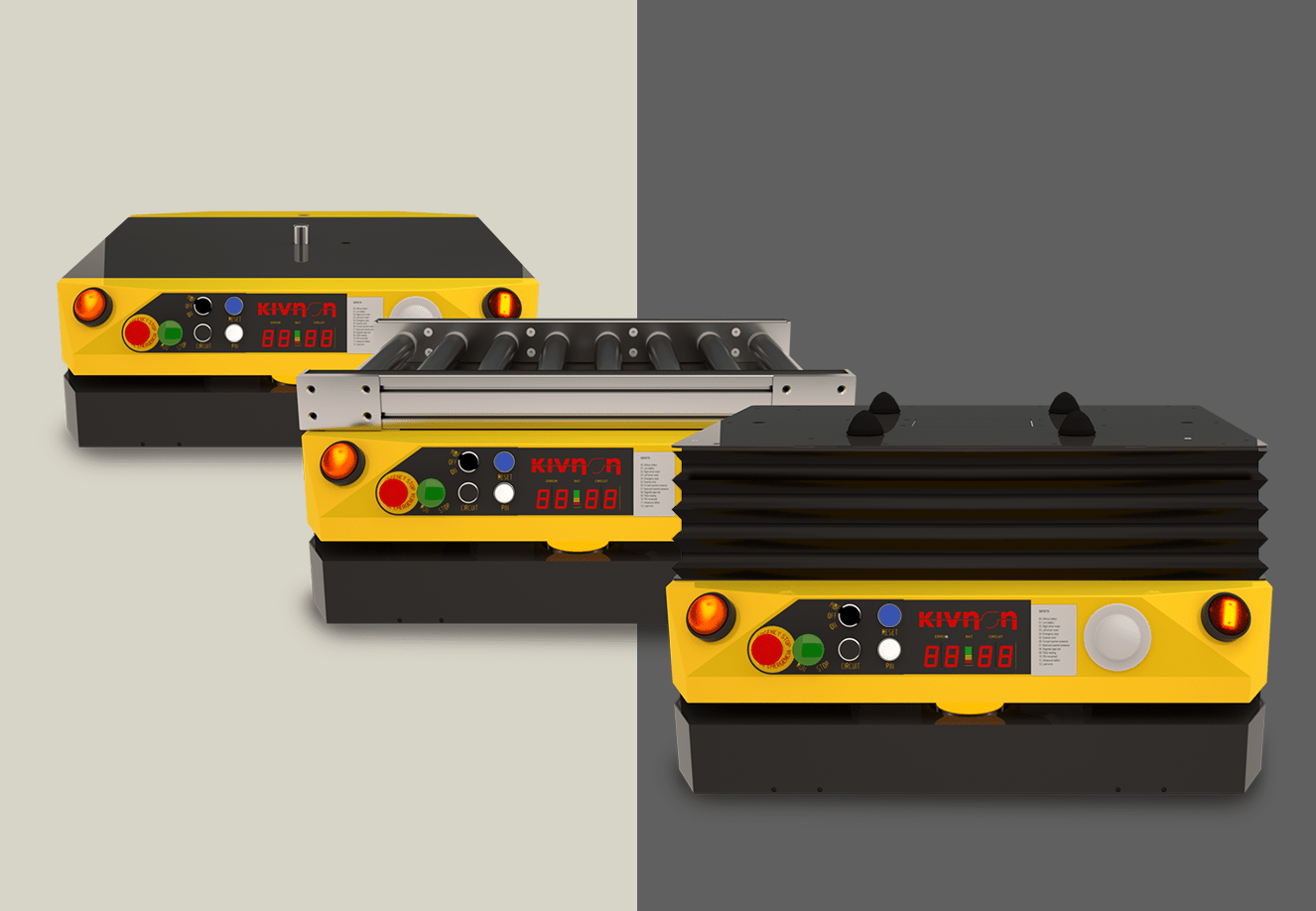

Coupling system

Automated guided vehicle (AGV/AMR) with different options for on-board or towed loads: retractable pin, lift table and roller conveyor. It can also be used as a workbench.

Please contact us for further information on the K05 Twister.

K05
