AGV/AMR FORKLIFT

K55 Pallet Stacker

Automated guided vehicle (AGV/AMR) designed to move and stack palletized loads at low heights.
REQUEST INFORMATION
logo

This AGV/AMR model is the perfect solution for automating the transport of palletized medium loads at heights.

AGV/AMR FORKLIFT

K55 Pallet Stacker

This mobile robot is capable of performing cyclical or conditional circuits and interacting with other AGVs/AMRs, machines, systems and/or people.

Perfectly designed to adapt to any open bottom or euro-pallet storage application, reception and dispatch of goods, and internal material transport.

In addition, this pallet stacker allows to optimize properly the storage space and improves processes efficiency.

Please contact us for further information on the K55 Pallet Stacker.
REQUEST INFORMATION
vídeo
MOVEMENT

Lineal, Two-way movement

LOAD

Load capacity of up to 1,000 kg

ELEVATION

Lifting capacity of up to 1,500 mm

GUIDANCE

Mapping navigation

CONNECTIVITY

Can be adapted to connect to fleet management systems, including those based on VDA 5050

HIGH PRECISION

Makes precise stops with full accuracy

self driving agv
MOVEMENT

Two-way movement

LOAD

Load capacity of up to 1,000 kg

ELEVATION

Lifting capacity of up to 1,000 mm

GUIDANCE

Magnetic guidance or mapping navigation

CONNECTIVITY

Can be adapted to connect to fleet management systems, including those based on VDA 5050

HIGH PRECISION

Makes precise stops with full accuracy

AGV/AMR FORKLIFT

K55 Pallet Stacker

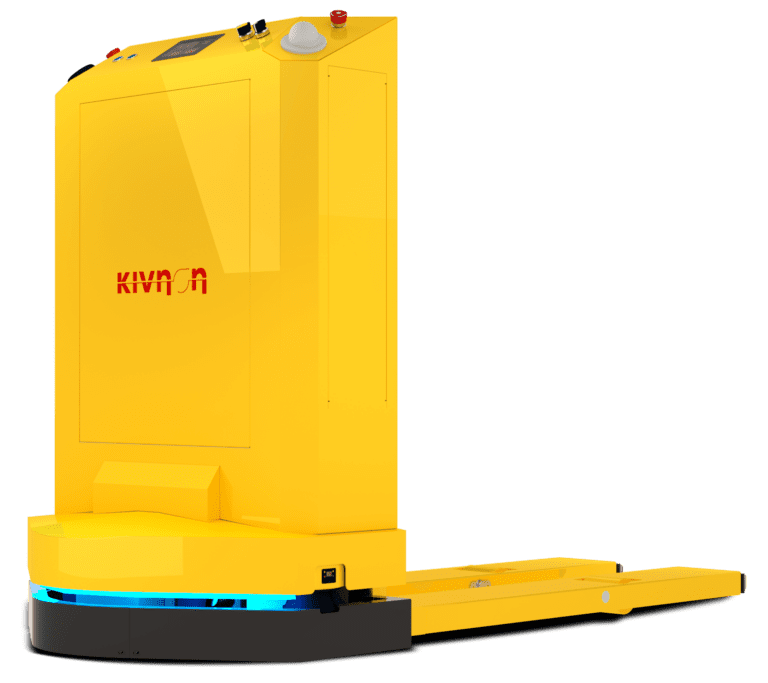

View the K55 Pallet Stacker from different angles and learn about its technical features.

Front Side Top
Length: 1,933 mm x Width: 920 mm x Height: 2,346 mm

Transport type:

Lifting

Maximum speed:

1 m/s

Battery:

Lithium and online charging in integrated circuit

Safety measures:

360º safety via laser scanners, safety PLC and LED signaling

Status:

Frontal status, error, and circuit control display

The features and specifications described are generic and may vary according to model and configuration.
The exact technical details might vary depending on the specific project where this AGV/AMR will be installed.

Please contact us for further information on the K55 Pallet Stacker.
