AGV/AMR MOUSE
K10HP One-Way

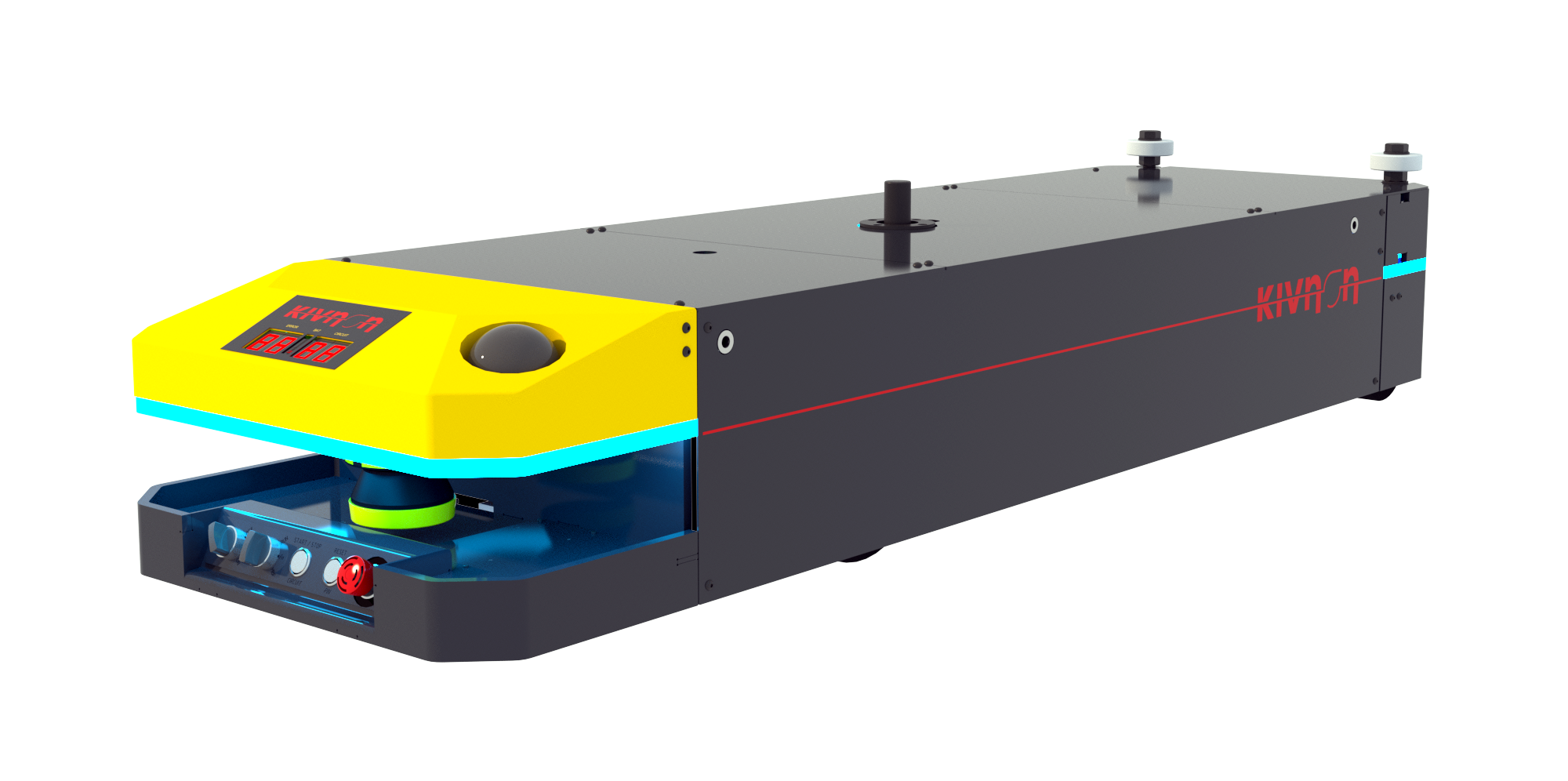

Automated guided vehicle designed to carry trolleys in a single direction of travel
This AGV/AMR model is the perfect solution for automating
the transport of large loads over long distances
in one-way processes.
AGV/AMR MOUSE
K10HP One-Way
This mobile robot is able to follow cyclic, fixed or conditional routes.
The incorporated safety system allows it to share spaces and routes with people, other vehicles, mobile robots and upper-level maintenance controls.
LED indicators and frontal display informs about alerts or alarms, battery status and AGV destination.
Please contact us for further information on the K10 HP One-Way.
MOVEMENT
One-way movement
LOAD
Towing capacity of up to 5000kg on a wheeled trolley
GUIDANCE
Magnetic guidance navigation
CONNECTIVITY
Can be adapted to connect to fleet management systems, including those based on VDA 5050
HIGH PRECISION
Makes precise stops with full accuracy
MOVEMENT
One-way movement
LOAD
Towing capacity of up to 3,000kg on a wheeled trolley
GUIDANCE
Magnetic guidance navigation
CONNECTIVITY
Can be adapted to connect to fleet management systems, including those based on VDA 5050
HIGH PRECISION
Makes precise stops with full accuracy
Transport type:
Towing
Maximum speed:
1 m/s
Battery:
Safety measures:
Laser scanner, ultrasound sensor, safety PLC, Emergency button and Bluespot
Status:
Frontal status, error, battery and circuit control display
The features and specifications described are generic and may vary according to model and configuration.
AGV/AMR K10HP One-Way
Coupling system
Automated guided vehicle (AGV/AMR) designed to transport loads by coupling and decoupling trolleys automatically via retractable pin.
